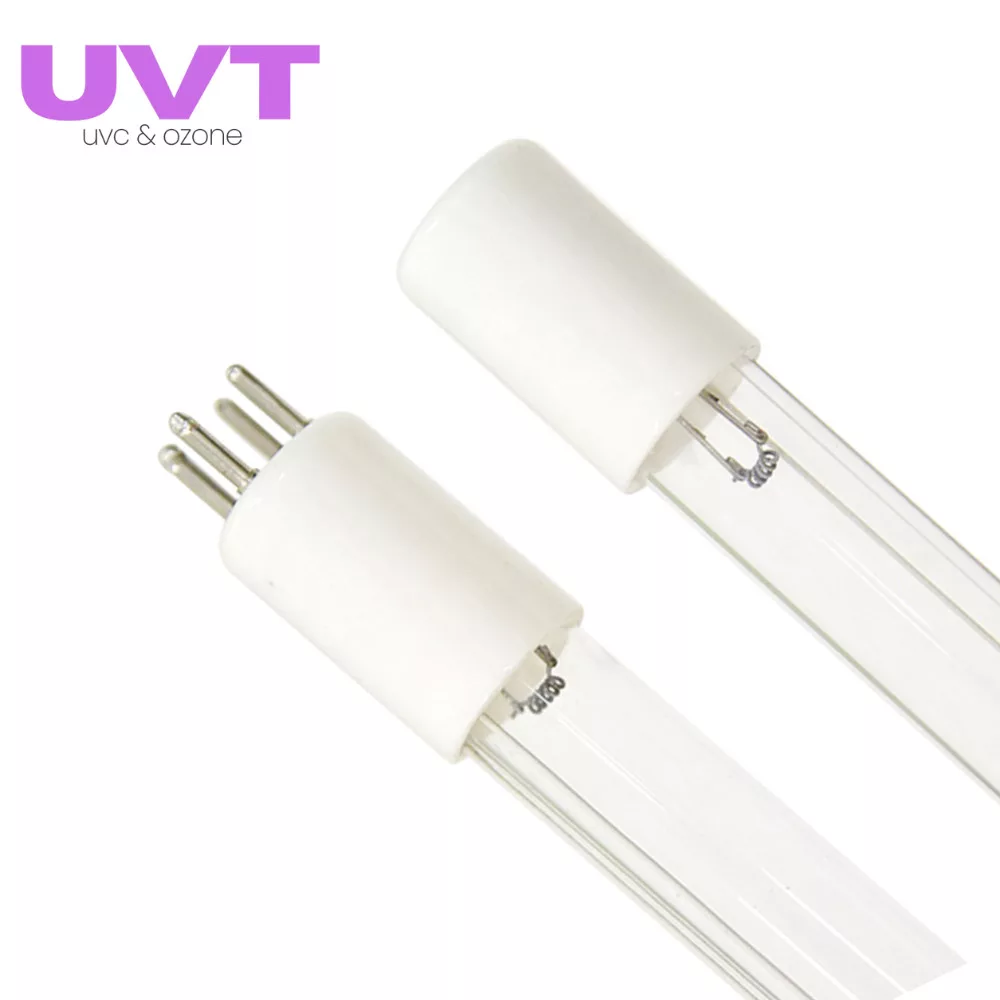

GPH118T5L/4 pin Quartz Germicidal UV-C Lamp, 6 Watt
10.00 € +0% VAT Intra-Community Supply
GPH118T5L/4 pin Quartz Germicidal UV-C Lamp, 6 Watt
The T5 L/4 Quartz Germicidal UV-C Lamp emits short-wave ultraviolet radiation (approximately 254 nm) that effectively inactivates bacteria, viruses, and other microorganisms. Its quartz glass envelope ensures high UV transmission, providing excellent disinfection performance in air, water, and surface treatment applications. The T5 L/4 design offers a compact size and reliable operation, making it ideal for use in industrial and professional disinfection systems.
UVTechnology UV-C lamps can be used as equivalent replacements for lamps from many other manufacturers. If you are unsure about selecting the correct lamp type, wattage or connection, please contact us – based on the technical specifications, we will help you find the appropriate replacement lamp for your equipment.
Power
6 Watt
Lamp Diameter
15 mm/T5
Lamp Length
118 mm
Lamp Current
425 mA
Lamp Voltage (50-60Hz)
25 V
UV-C Output at 254 nm
13 uw/cm2
Service Life
10 000 hours
Available to order
Estimated delivery time: 29/10/2026
10.00 € +0% VAT Intra-Community Supply
Details
The T5 L/4 Quartz Germicidal UV-C Lamp is a highly efficient disinfection light source that emits ultraviolet radiation at a wavelength of approximately 253.7 nm. This short-wave UV-C radiation damages the DNA and RNA of microorganisms, including bacteria, viruses, and mold spores, preventing their reproduction and rendering them harmless.
The lamp is manufactured with a special quartz glass envelope that provides outstanding UV transmission, maximizing its germicidal effectiveness. The T5 format (15 mm diameter) combined with the L/4 length configuration results in a compact design, making it particularly suitable for installations where space is limited, such as air handling units, ventilation ducts, water treatment systems, and UV disinfection equipment.
When operated with a suitable electronic ballast, the lamp offers a long service life, stable UV output, and reliable performance. It is an ideal choice for industrial and professional applications requiring continuous, dependable, and highly effective disinfection in air, water, or surface treatment systems.
The lamp is manufactured with a special quartz glass envelope that provides outstanding UV transmission, maximizing its germicidal effectiveness. The T5 format (15 mm diameter) combined with the L/4 length configuration results in a compact design, making it particularly suitable for installations where space is limited, such as air handling units, ventilation ducts, water treatment systems, and UV disinfection equipment.
When operated with a suitable electronic ballast, the lamp offers a long service life, stable UV output, and reliable performance. It is an ideal choice for industrial and professional applications requiring continuous, dependable, and highly effective disinfection in air, water, or surface treatment systems.
Data
Estimated delivery time
29/10/2026
