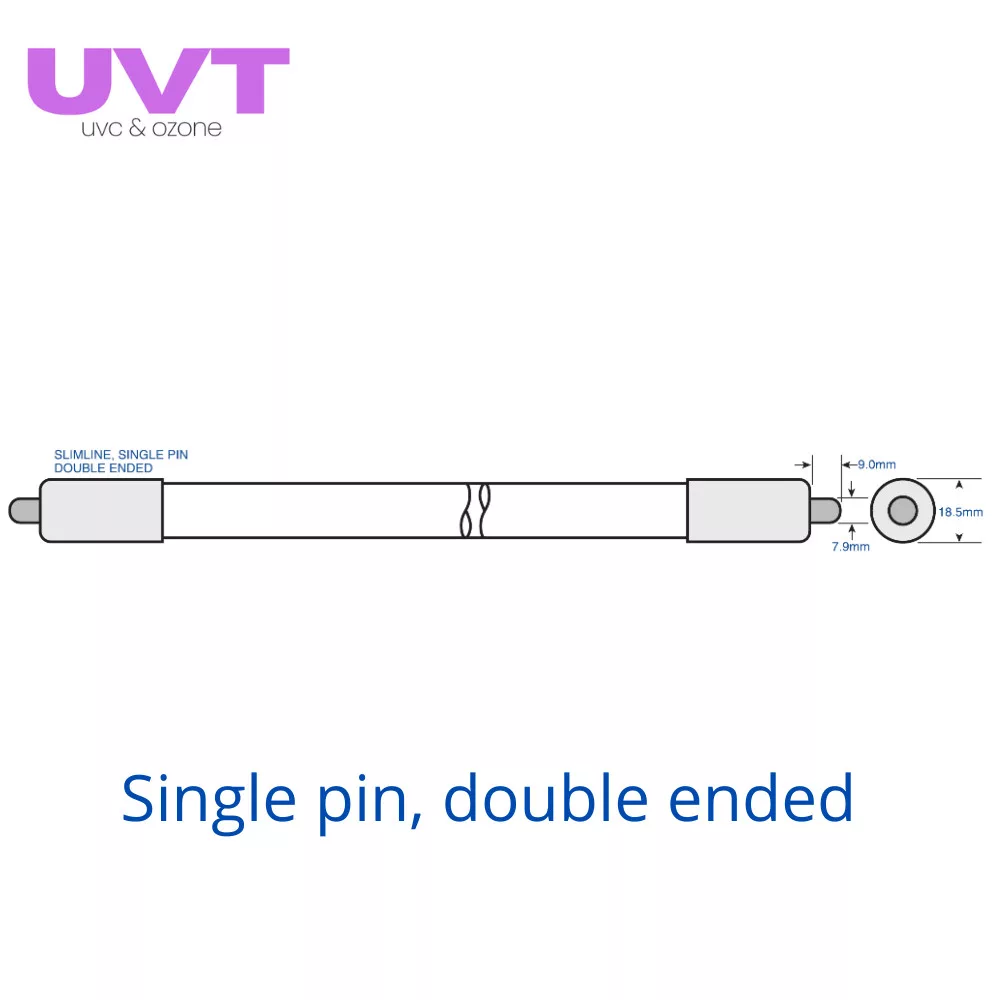

G48T5L/single pin Quartz Germicidal UV-C Lamp, 55 Watt
40.00 € +0% VAT Intra-Community Supply
G48T5L/single pin Quartz Germicidal UV-C Lamp, 55 Watt
Single-pin UV-C lamps are specially designed germicidal lamps that provide effective disinfection in water, air, and surface treatment systems. The lamps emit UV-C radiation at a wavelength of 254 nm and require a compatible electronic ballast, typically an instant-start ballast, for operation.
UVTechnology UV-C lamps can be used as equivalent replacements for lamps from many other manufacturers. If you are unsure about selecting the correct lamp type, wattage or connection, please contact us – based on the technical specifications, we will help you find the appropriate replacement lamp for your equipment.
Power
55 Watt
Lamp Diameter
15 mm/T5
Lamp Length
1 148 mm
Lamp Current
425 mA
Lamp Voltage (50-60Hz)
165 V
UV-C Output at 254 nm
170 uw/cm2
Service Life
10 000 hours
Available to order
Estimated delivery time: 17/10/2026
40.00 € +0% VAT Intra-Community Supply
Details
Single-pin base UV-C lamps are germicidal lamps developed for professional and industrial disinfection systems. The special single-pin connection ensures a reliable electrical contact and stable operation in various UV-C devices.
The lamps generate UV-C radiation at a wavelength of 254 nm, which effectively damages the DNA and RNA structures of bacteria, viruses, moulds, and other microorganisms. As a result, they are widely used in water disinfection systems, air-handling equipment, industrial processes, and surface disinfection applications.
A compatible electronic ballast is required to operate single-pin UV-C lamps, typically an instant-start ballast. Their stable UV output, long service life, and reliable operation make these lamps ideal for continuous industrial use.
The lamps generate UV-C radiation at a wavelength of 254 nm, which effectively damages the DNA and RNA structures of bacteria, viruses, moulds, and other microorganisms. As a result, they are widely used in water disinfection systems, air-handling equipment, industrial processes, and surface disinfection applications.
A compatible electronic ballast is required to operate single-pin UV-C lamps, typically an instant-start ballast. Their stable UV output, long service life, and reliable operation make these lamps ideal for continuous industrial use.
Data
Estimated delivery time
17/10/2026
