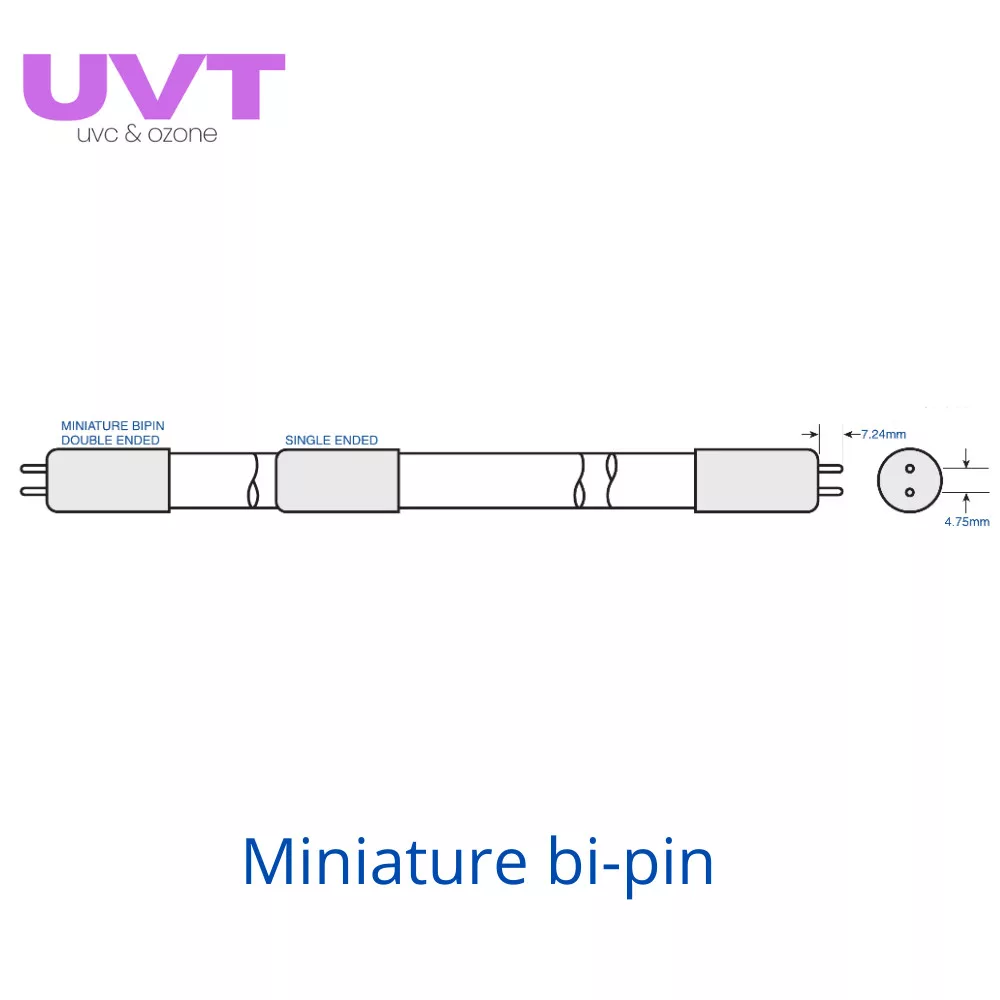

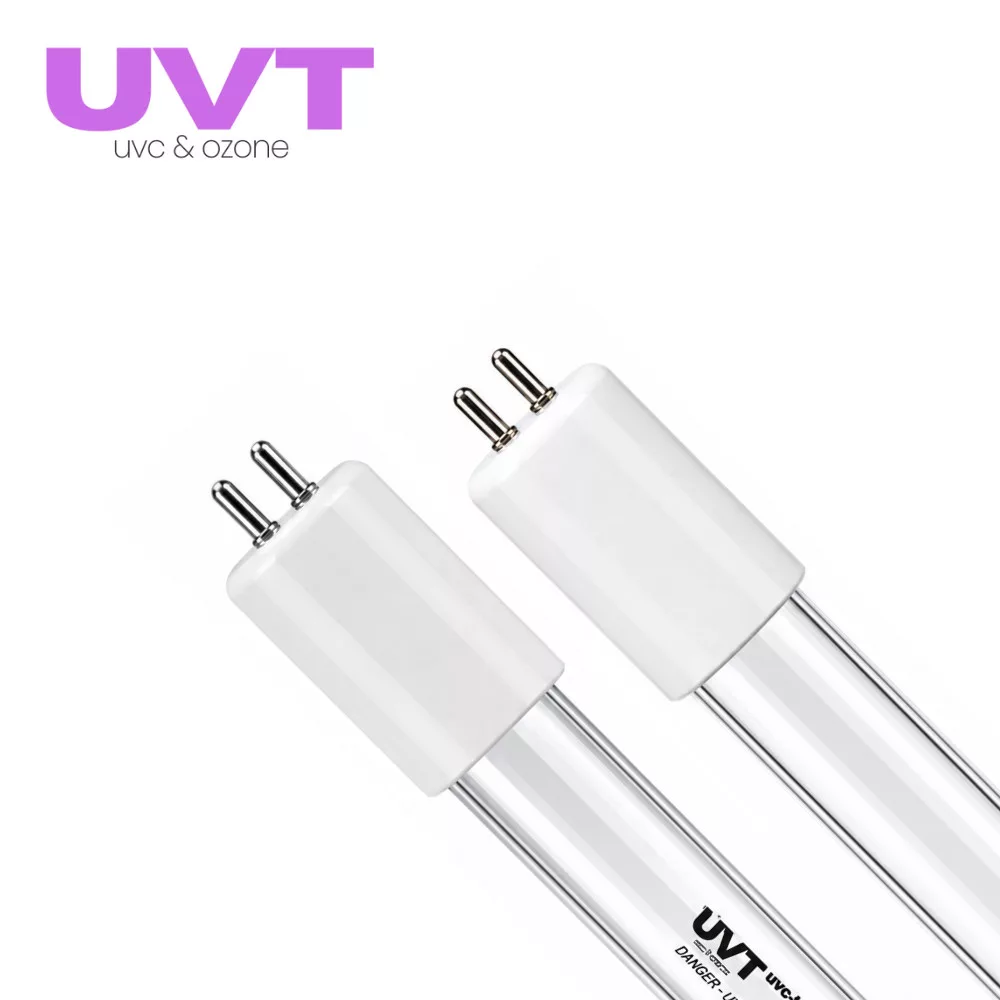

UVC10W Quartz Germicidal UV-C Lamp, 10 Watt, Mini Bi-Pin (4.7 mm)

The Mini Bi-Pin UV-C lamp is a low-pressure mercury-vapour UV-C lamp developed for professional disinfection applications. It primarily produces germicidal radiation at a wavelength of 253.7 nm. This short-wave UV-C radiation damages the DNA and RNA of microorganisms—including bacteria, viruses, moulds, and other pathogens—thereby preventing their reproduction and ability to cause infection.

The lamp is equipped with a Mini Bi-Pin G5 base, allowing simple and secure installation in a wide range of UV disinfection systems. Its special quartz-glass envelope provides excellent UV transmittance, helping to achieve maximum germicidal effectiveness.

Mini Bi-Pin UV-C lamps are widely used for:

• disinfection of drinking water and process water,
• air-handling and HVAC systems,
• food-processing and pharmaceutical equipment,
• swimming-pool and aquaculture systems,
• surface disinfection and industrial hygiene applications.

The lamps provide stable UV-C output, a long service life, and reliable operation. To maintain maximum disinfection efficiency, UV-C lamps should generally be replaced after approximately 9,000–12,000 operating hours or once a year, even if the lamp is still illuminated, as its UV-C output gradually decreases during operation.

The Mini Bi-Pin UV-C lamp is an ideal choice for professional applications requiring effective, chemical-free, and environmentally friendly disinfection.
